The separator this fits

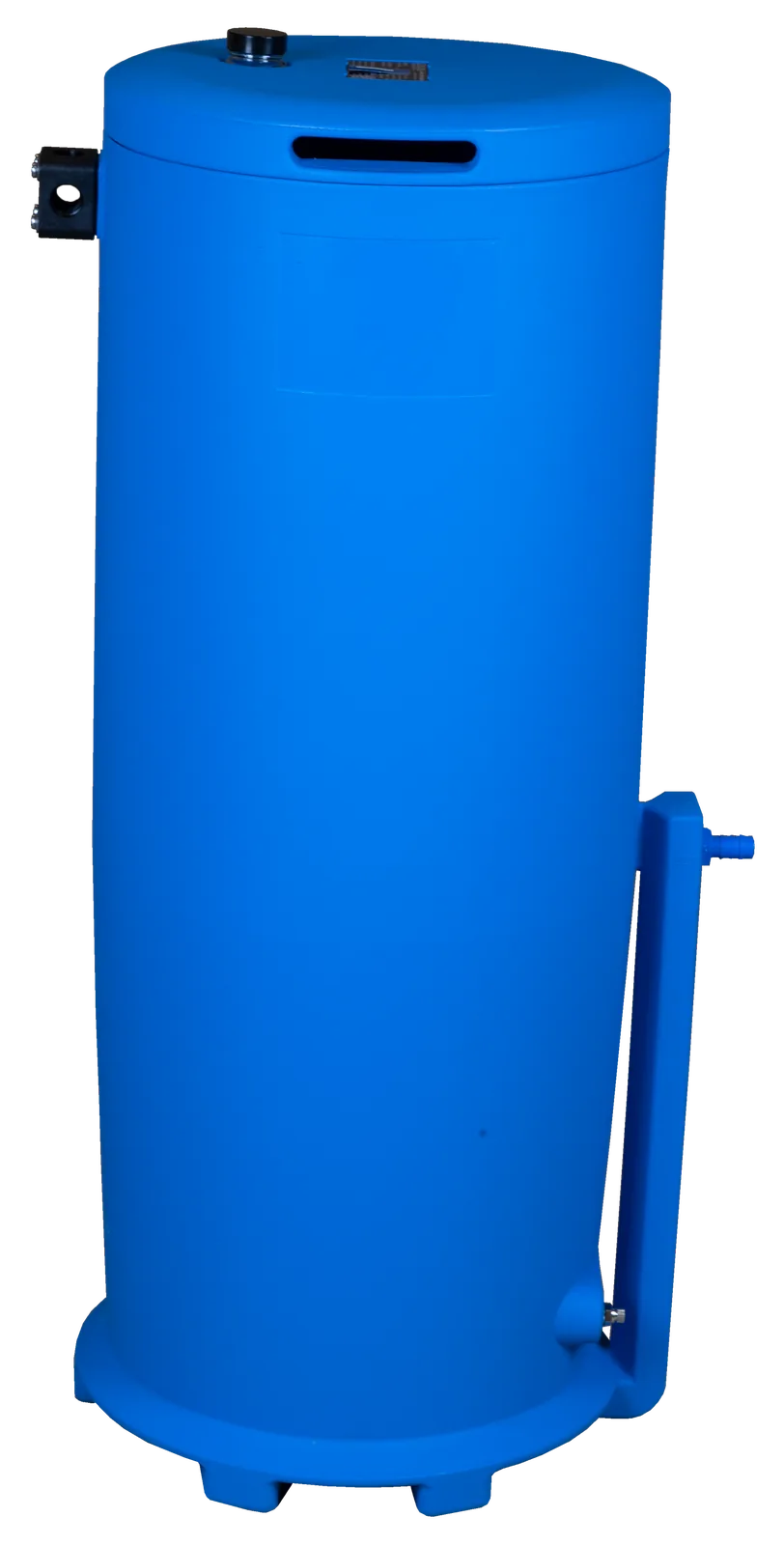

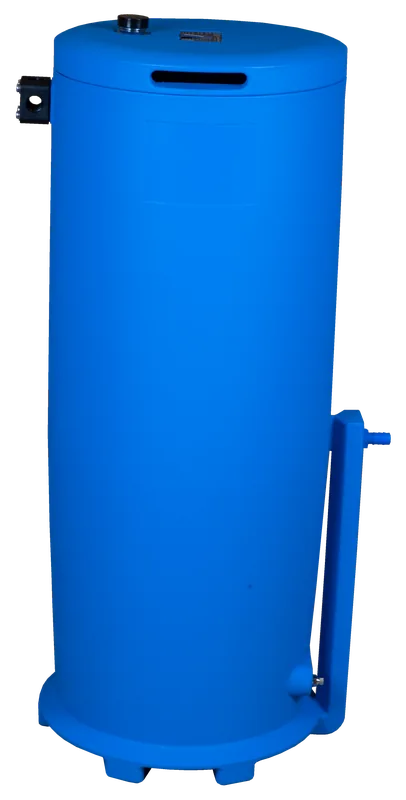

This kit services the STELSEP CSR2000 oil/water separator. The unit, lid and pipework stay in place, and the kit supplies the replaceable filter bags inside it.
Part of the STERLING CS / CSR Legacy range.
Specification
This kit comprises 3 bodies. Each is dimensioned separately, so check the one that matches what you removed.
| Part number | Dimensions |
|---|---|
| CSR1000SK/A × 2 | Ø366 × 340 mm (Ø14.4 × 13.4 in) |
| CSR1000SK/B × 2 | Ø388 (upper) → Ø366 (lower) × 270 mm (Ø15.3 (upper) → Ø14.4 (lower) × 10.6 in) |
| CSR1000SK/C × 2 | Ø366 × 210 mm (Ø14.4 × 8.3 in) |
What this kit fits
This is a STERLING CS / CSR Legacy kit for CSR2000 separators. It is not a cross-reference for another manufacturer's unit.
